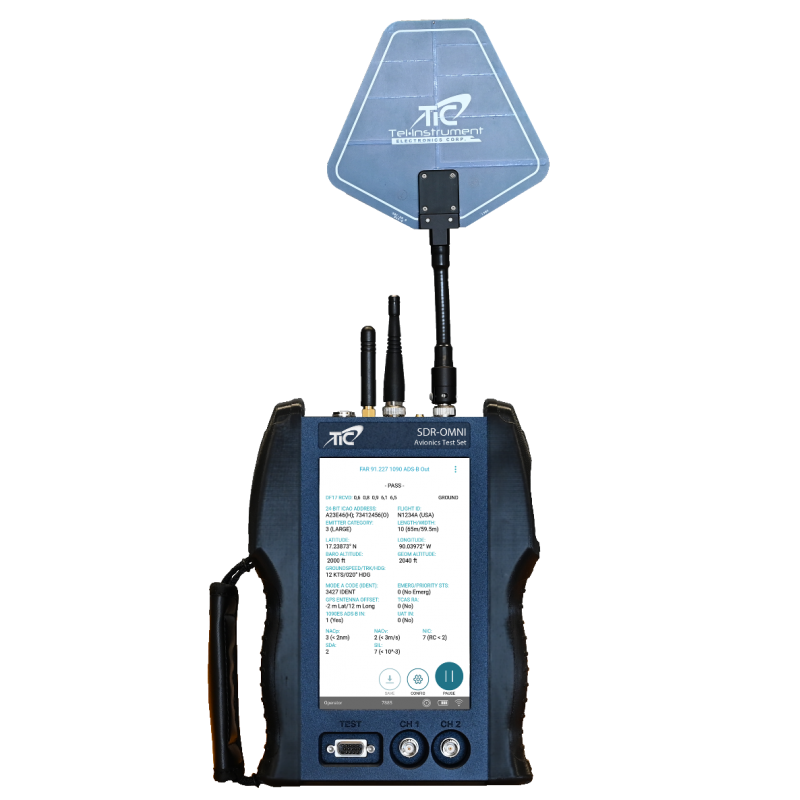

Thiết bị kiểm tra hàng không bằng Software Defined Radio: SDR-OMNI Avionics Test Set

RELEASE 1
 TRANSPONDER / 1090 MHz ADS-B / DME App: Automated FAR Part 43 Appendix F transponder
test for ATCRBS and Mode S Transponders; individual tests (power, freq., % reply, SLS, etc.)
ADS-B OUT Testing: Decoded display of BDS registers and FAR 91.227 / AC60-165B required data
ADS-B IN Testing: Up to 4 simulated ADS-B or TIS-B Targets
 978 MHz UAT ADS-B App: UAT ADS-B OUT: Decoded display of all required ADS-B data
UAT ADS-B IN: Up to 4 simulated ADS-B or TIS-B Targets; FIS graphical weather data
 RF COAX/ANTENNA Test App: VSWR and DTF (Distance-to-Fault) for on-aircraft troubleshooting
(included with basic test set)
RELEASE 2
 NAV/COMM App: Includes additional transmit hardware module
VOR Receivers, ILS Receivers (GS, LOC, & Marker Beacon)
ELT Transmitters: 406 MHz power, frequency, data; 121.5 / 243 MHz swept tone
HF/VHF/UHF COMM Transceivers: Transmit and receive testing – RF power, sensitivity, modulation;
Voice test of TX/RX using smartphone compatible headset
DME: Test DME navigation radios
 TCAS I & II, ACAS App: Up to 4 simulated targets
 TACAN App: Test TACAN navigation radios
RELEASE 3
 GPS App: Multi-satellite L1 GPS signal for position and aircraft movement simulation
 VDL Mode 2: Digital comm modulation for ATC data link testin
